DTH Drill rigs

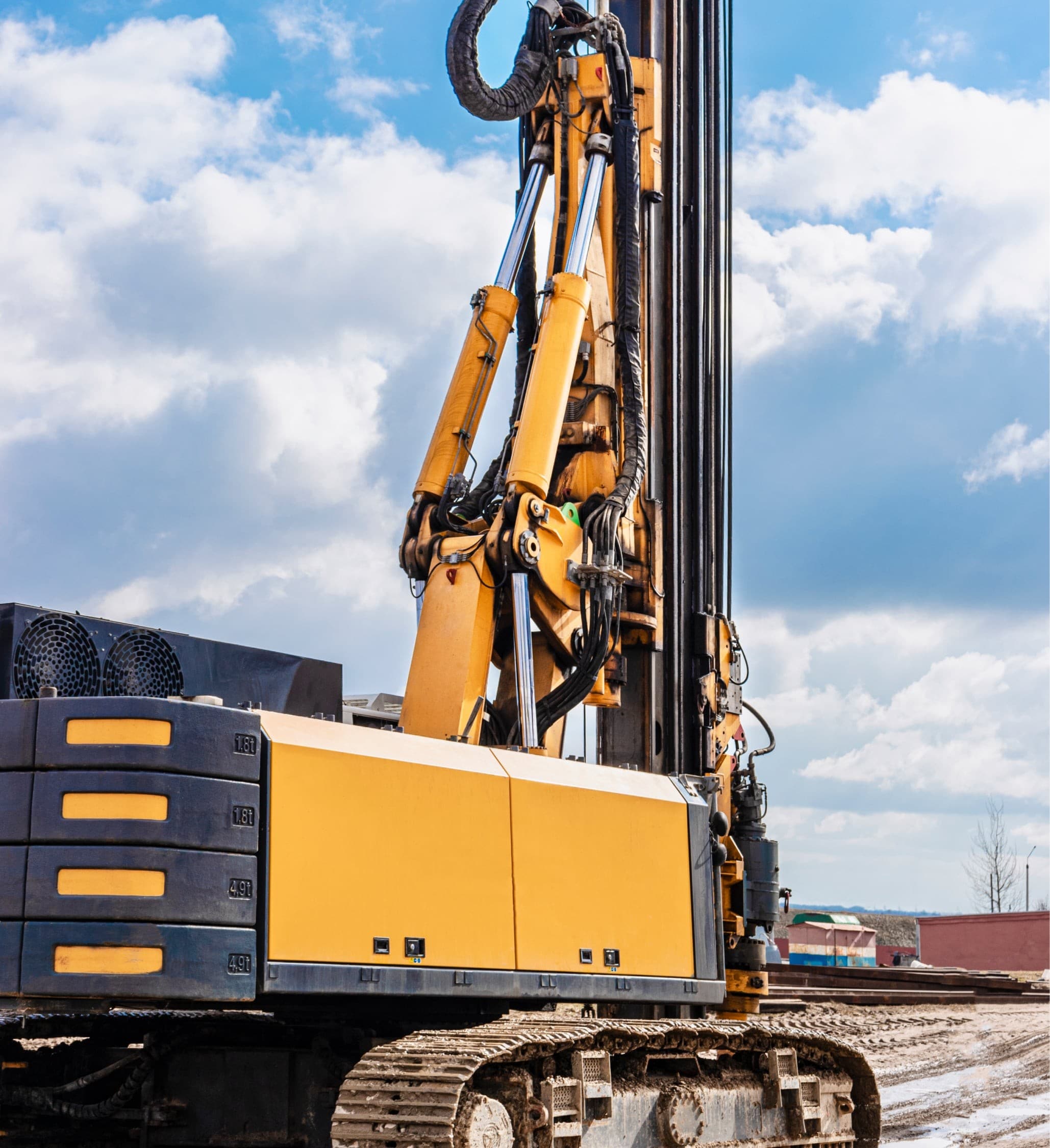

EK300

Standard chassis:
CAT 352 Tier IV

Installed power:
432 hp
322 kW
Maximum torque:
252,000 ft.lbs
35,000 kg.m
Maximum diameter:
15 ft
4,600 mm
Standard drilling depth:
157 ft
48,000 mm
Operation weight:
217,600 lb
98,700 kg

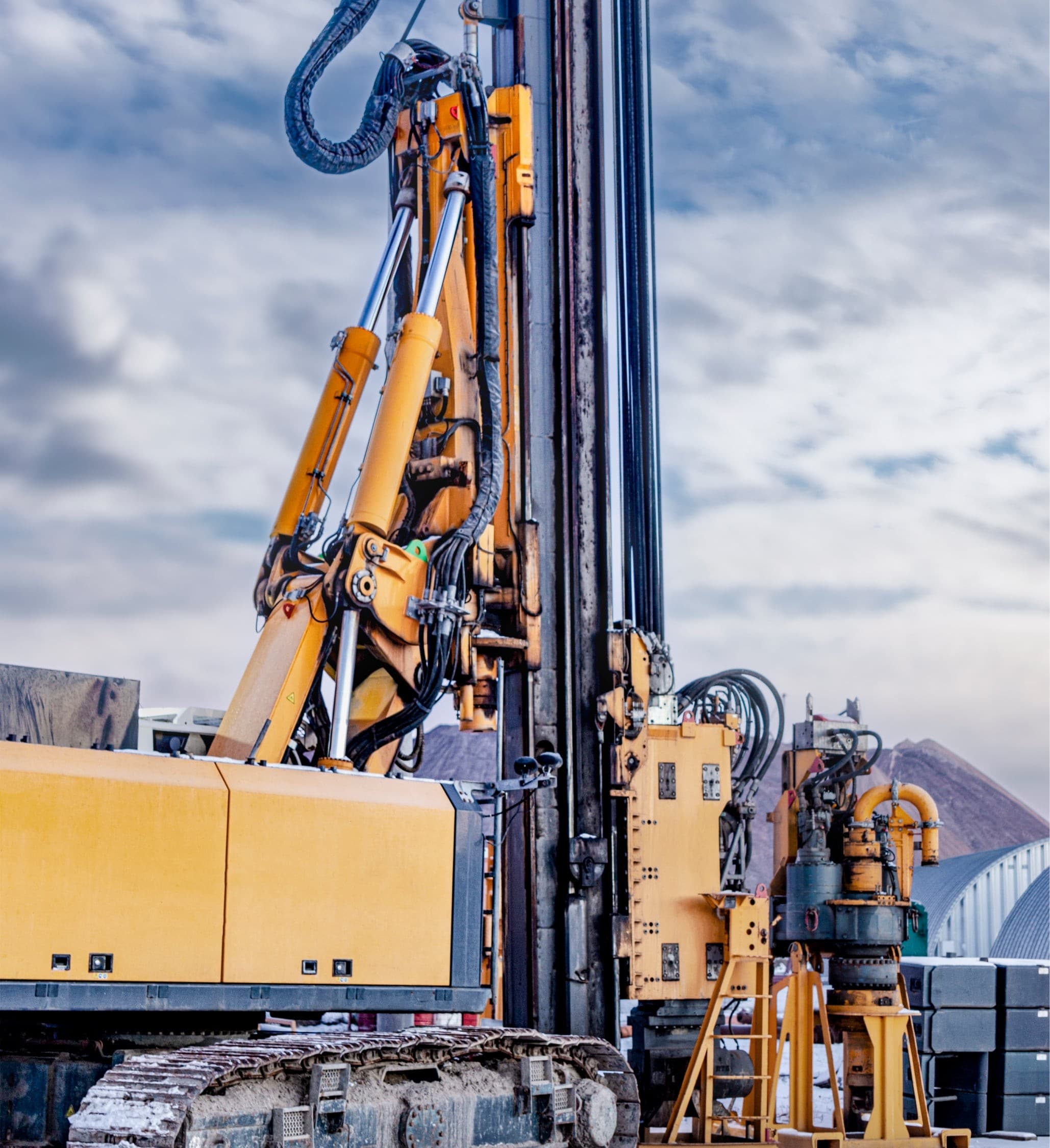

EK250

Standard chassis:
CAT 336 Next Gen

Installed power:
314 hp
234 kW
Maximum torque:
234,500 ft.lbs
31,800 kg.m
Maximum diameter:
13 ft
4,000 mm
Standard drilling depth:
157 ft
48,000 mm
Operation weight:
190,000 lb
86,400 kg

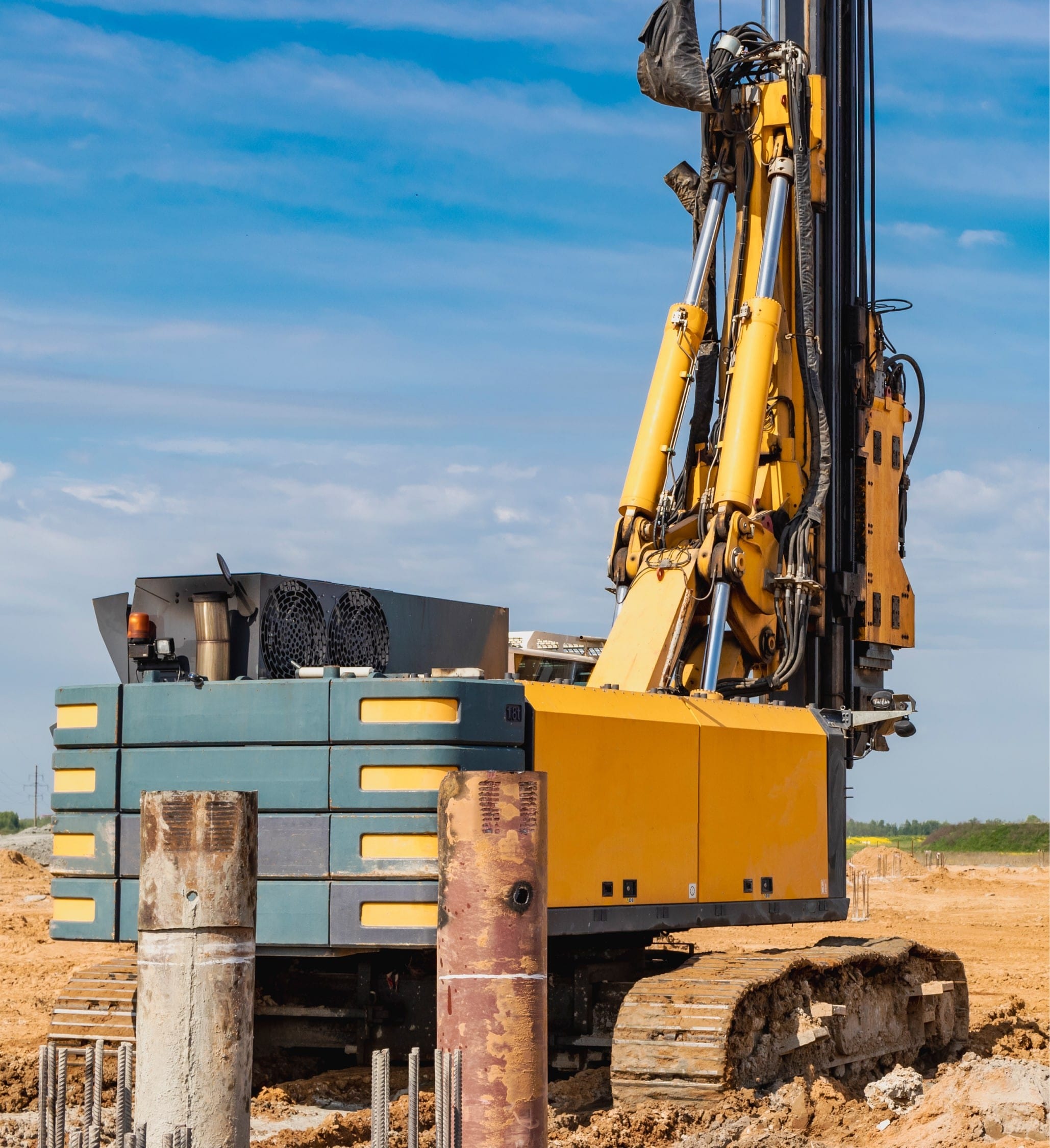

EK200

Standard chassis:
CAT 336 Tier IV

Installed power:
314 hp
234 kW
Maximum torque:
193,360 ft.lbs
29,000 kg.m
Maximum diameter:
11 ft
4,000 mm
Standard drilling depth:
130 ft
39,000 mm
Operation weight:
138,000 lb
75,000 kg
